i Series

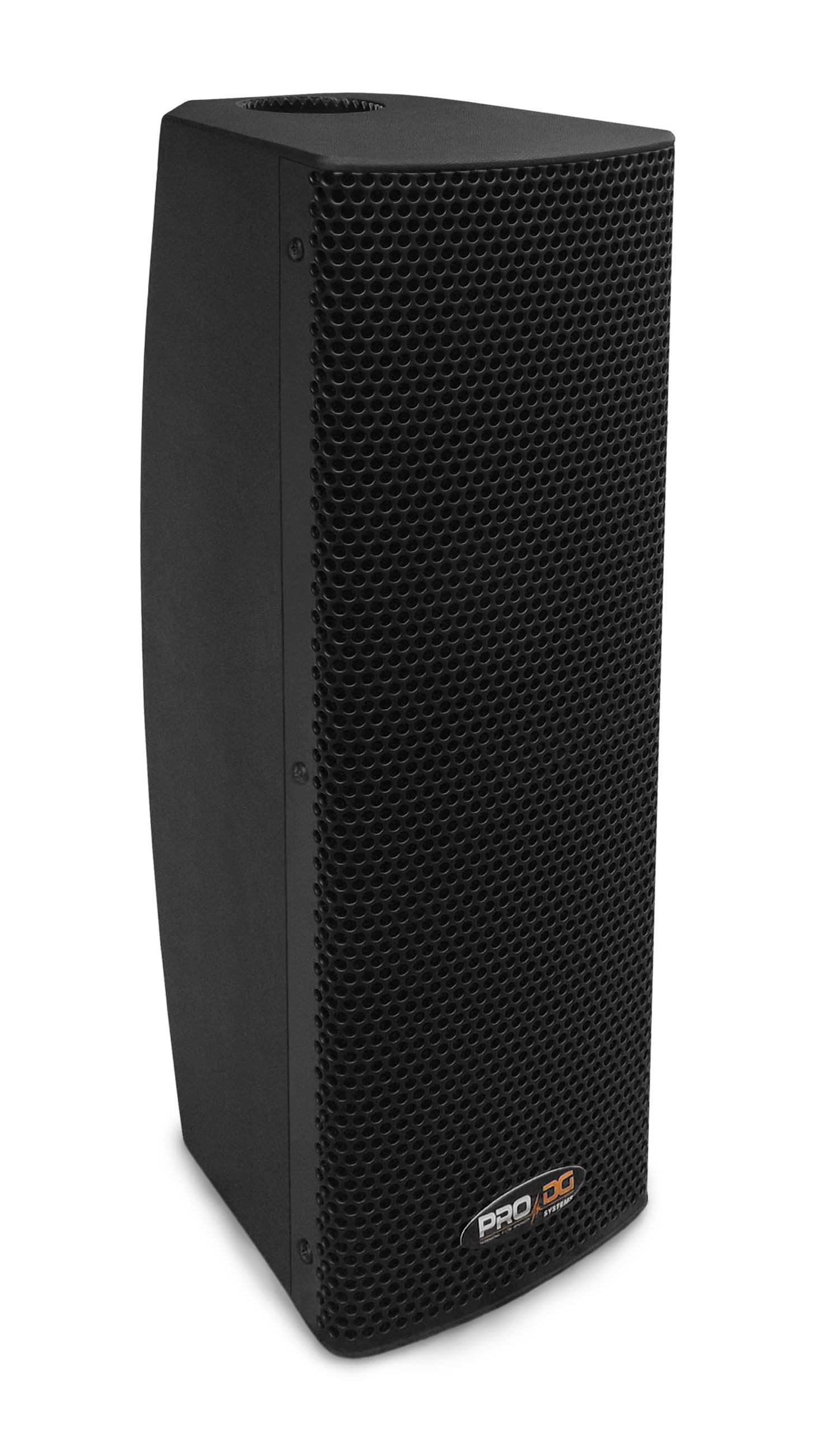

i 427 A

The New i 427 A is a column speaker equipped with four (4) speakers of 2.75" in a tuned enclosure. Its ultra compact size and wide versatility makes it the perfect system for fixed installation and all type of point source applications where the minimal visual impact is required.



Despite its minuscule size, i 427 A has been designed to provide with a high performance and an exquisite sound quality, resulting in an exceptional performance in the vocal range.



Integration hardware to combine up various units i 427 A units is available.



Tripod and extensible accessory to stack with subwoofer are also available. i 427 A is ideal to be combined with i 110 BA, achieving an extremely compact system configuration for small bands applications as well.



TECHNICAL SPECIFICATIONS:



Power Handling: 60 W RMS (EIA 426A Standard) / 120 W program / 240 W peak.

Nominal Impedance: 4 Ohm.

Average Sensitivity: 96dB / 2.83V / 1m (average of 150-16.000Hz wideband).

Maximum SPL Calculation: / 1m 113 dB continuous / 116 dB program / 119 dB peak.

Frequency Range: +/-3 dB between 200 Hz - 20 kHz.

Nominal Directivity: 120° of horizontal coverage, 30° of vertical coverage.

Components: four (4) speakers of 2.75", 15W with neodymium magnet, 1" voice coil.

Amplifier: last generation Class-D amplifier.

Rigging Points: 1 x M8.

Connectors: 4 core Speakon (2 Core 24V / 2 Core Signal +/-).

Acoustic Enclosure: reinforced polypropylene plastic.

Finish: Special paint finish in black.

Grille: 1mm thickness metal grille with 0.5mm acoustic foam.

Dimensions: (HxWxD); 320x110x113mm (12.60”x4.33”x4.45”).

Weight: 1.5 Kg (3.31 lbs) net / 2 Kg (4.41 lbs) with packaging.
